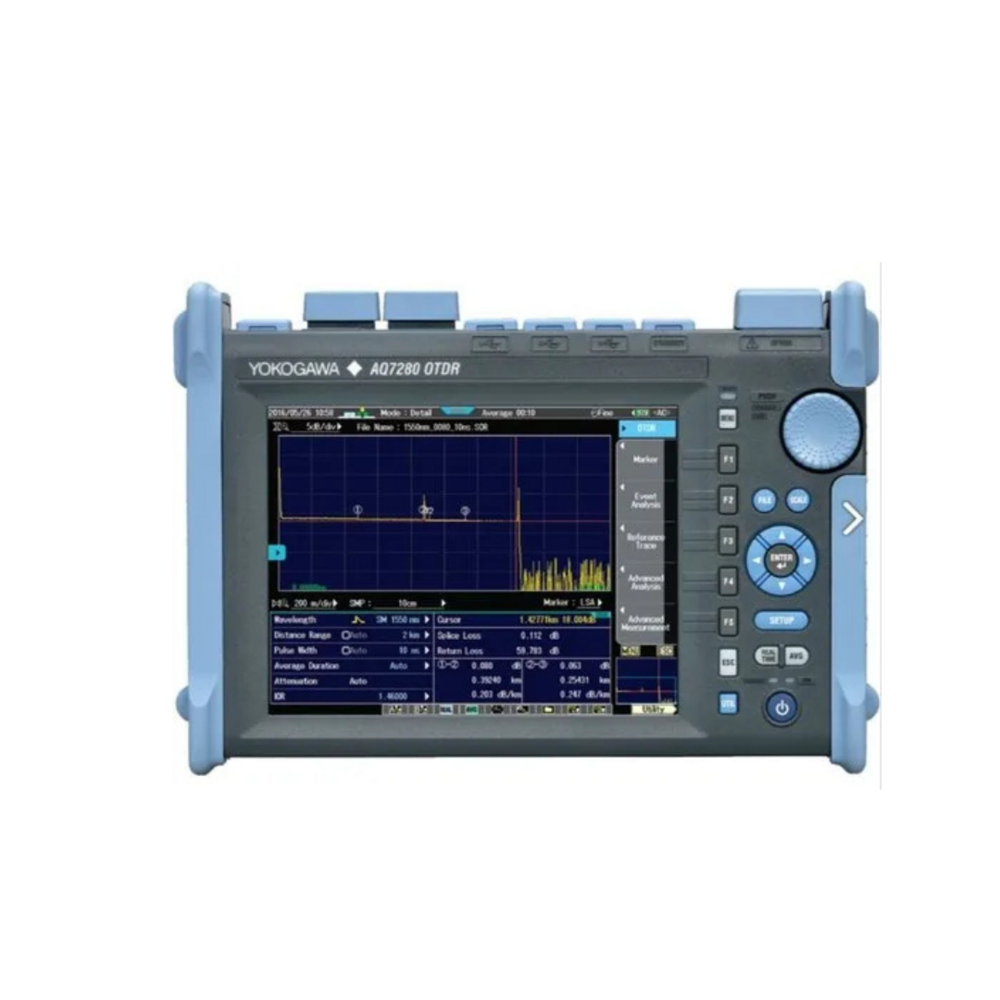

Yokogawa AQ7280 Modular Optical Time Domain Reflectometer

Product Description

The Yokogawa AQ7280 is built to tackle the complexities of modern optical networks. It features a large 8.4-inch high-resolution touchscreen, a powerful dual-core processor, and up to 12 hours of battery life, ensuring reliable and efficient testing in the field. Whether you are analyzing long-haul links, detecting splices, measuring attenuation, or verifying installations, the AQ7280 provides clear, accurate trace data every time.

With support for multiple wavelengths and a variety of OTDR modules”including multi-mode and single-mode options”this instrument adapts to nearly every optical testing scenario. Its modular design ensures that users only pay for the features they need, while still allowing future upgrades as technology advances.

Key Features

… Modular and Customizable
The AQ7280 features multiple module slots that allow users to integrate different OTDR modules, power meters, light sources, and visual fault locators, offering unmatched flexibility.

… Multiple Wavelengths Supported
Supports a broad range of wavelengths (including 1310/1550 nm, 1625 nm, and 1650 nm), suitable for both single-mode and multi-mode fiber applications.

… Wide Dynamic Range
Offers up to 50 dB dynamic range, enabling accurate testing of long fiber spans with high loss or complex structures.

… High-Resolution Touchscreen Interface
Equipped with a large 8.4-inch touchscreen, the AQ7280 provides intuitive controls, multi-trace comparison, and zooming capabilities for detailed event analysis.

… Extended Battery Life
Runs up to 12 hours on a single charge, making it ideal for field use where power availability may be limited.

… Fast Trace Acquisition
Delivers rapid measurements with minimal wait time”ideal for high-efficiency workflows and dense testing schedules.

… SmartMapper„ Functionality
Automatically interprets and summarizes key events in the fiber, such as connectors, splices, bends, or breaks, in a user-friendly format.

… Robust Construction
Designed for harsh environments with a rugged outer shell, high-impact resistance, and operational durability across a wide temperature range.
