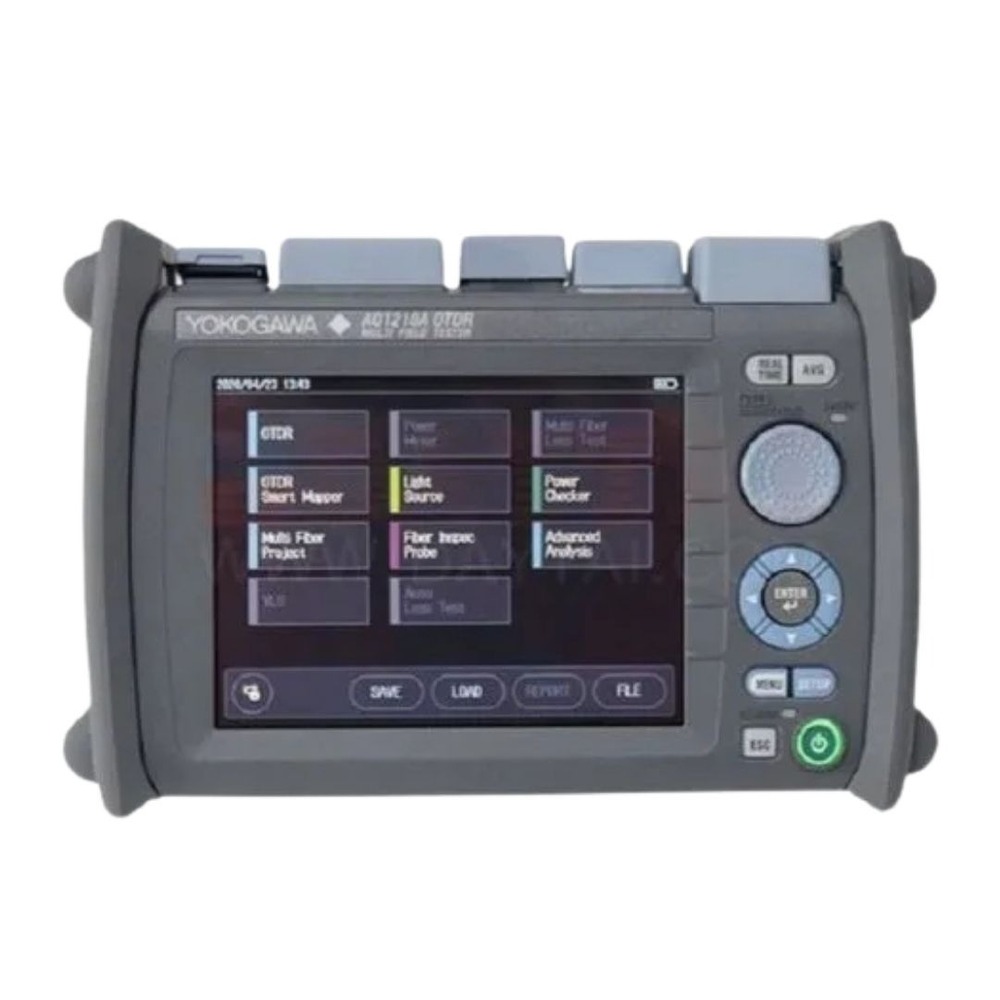

YOKOGAWA AQ1210 Series OTDR

Name: YOKOGAWA AQ1210 Series OTDR
Brand: SKY BIRDS INTERNATIONAL
Price: 165000 INR
Availability: InStock

Price 165000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

YOKOGAWA AQ1210 Series OTDR Specification

Connectivity Type
USB, Wi-Fi (optional)

Interface Type
Touchscreen, USB port

Mounting Type
Portable/Handheld

Model
AQ1210 Series

Features
Multi-touch Screen, Compact and Lightweight, Fast Boot-up, High precision event detection, Built-in Fiber Inspection Probe support

Power Supply
Lithium-ion battery / AC Adapter

Battery Backup
More than 10 hours operation

Range
Dynamic range up to 42 dB

Size
7 inch display

Operating Temperature
-10C to +50C

Product Type
Optical Time Domain Reflectometer

Application
Commercial & Industrial

Dimension (L*W*H)
216 mm 128 mm 59 mm

Material
Polycarbonate (body)

Weight
Approx. 1.0 kg (Including battery)

Capacity
Internal Storage up to 4GB

Coverage Area
Up to 256 km

Attenuation Dead Zone
2.5 m

Wavelengths
1310 nm / 1550 nm / 1625 nm (model dependent)

Auto Test Functions
Available

Connector Types
FC, SC, LC

Firmware Upgrade
Via USB or Wi-Fi

Language Support
Multi-language menu (English, Chinese, etc.)

Pulse Width
From 3 ns to 20 s

VFL (Visual Fault Locator)
Built-in (model dependent)

Data Storage
Internal & External (USB drive supported)

Event Dead Zone
0.6 m

Screen Type
Capacitive touch TFT LCD

Build Quality
Shock and splash resistant design

Trace Format
SOR (Telcordia GR-196-CORE)

Display Resolution
800 480 pixels

YOKOGAWA AQ1210 Series OTDR Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
10 Pieces Per Month

Delivery Time
4 Days

Main Domestic Market
All India

About YOKOGAWA AQ1210 Series OTDR

The Yokogawa AQ1210 series OTDR is designed to empower field technicians to make fast and precise measurements with confidence. The AQ1210 OTDR delivers high reliability with its robust design for operating under harsh field conditions. Engineered with innovative technology, the AQ1210 features dual operation mode by multi-touch,touchscreen and hard-key buttons as well as fully automatic measurement and easy-to-read analysis reports through new software applications. In addition, the AQ1210 enhances productivity and operability with its

lightning startup time, multi-tasking operation, and immediate reporting via wireless connectivity.

Advanced Fiber Testing Capabilities

The AQ1210 Series OTDR offers dynamic ranges up to 42 dB and covers fiber distances up to 256 km. It delivers highly accurate measurements with event and attenuation dead zones of 0.6 m and 2.5 m, respectively. Its built-in auto test function and high-resolution touch display empower users with effortless operation and precision results in both commercial and industrial fiber networks.

Rugged and User-Friendly Design

Constructed from shock-resistant polycarbonate, this OTDR withstands harsh conditions while remaining lightweight at approximately 1.0 kg. Its 7-inch capacitive touchscreen (800 480 pixels) provides easy navigation, and its battery offers over 10 hours of operation, making it ideal for field deployment. Multi-language support ensures accessibility for global users.

Flexible Storage and Connectivity

The AQ1210 Series supports both internal storage (up to 4GB) and external USB drives for convenient data management. Firmware upgrades can be performed via USB or Wi-Fi (optional), ensuring your device remains updated. It features FC, SC, and LC connector compatibility, plus optional built-in VFL and fiber inspection probe support to enhance testing versatility.

FAQ's of YOKOGAWA AQ1210 Series OTDR:

Q: How does the AQ1210 Series OTDR simplify the process of fiber optic testing?

A: The AQ1210 uses auto test functions, a 7-inch touchscreen interface, and clear multi-language menus, streamlining the fiber testing process for both novice and experienced users. Its fast boot-up and intuitive navigation reduce setup time and minimize user error.

Q: What types of connectors and accessories can be used with the AQ1210 Series OTDR?

A: This OTDR supports FC, SC, and LC fiber connectors. Additionally, selected models feature a built-in Visual Fault Locator (VFL) and can accommodate an optional fiber inspection probe for comprehensive diagnostics.

Q: When should I consider upgrading the firmware on the AQ1210 Series device?

A: Firmware upgrades ensure optimal performance and the latest features. It's recommended to update when new releases are available or if instructed by Yokogawa technical support. Upgrades can be performed via USB or Wi-Fi, depending on the model.

Q: Where can the AQ1210 Series OTDR be used effectively?

A: Designed for commercial and industrial environments, the AQ1210 is suitable for outdoor fieldwork as well as indoor laboratory and network facility applications, thanks to its shock and splash resistant polycarbonate construction and wide operating temperature range (-10C to +50C).

Q: How is measurement data stored and managed on the AQ1210 Series OTDR?

A: Measurement data can be saved internally (up to 4GB) or externally on a USB drive. Supported SOR trace format (Telcordia GR-196-CORE) ensures compatibility with industry-standard analysis software for easy trace management.

Q: What are the key benefits of using the AQ1210 Series OTDR in fiber network maintenance?

A: The AQ1210 delivers high-precision event detection, covers up to 256 km range, and provides rapid test results with minimal downtime. Its robust design, long battery life, and multi-touch interface allow field engineers to work efficiently and confidently in various environments.
