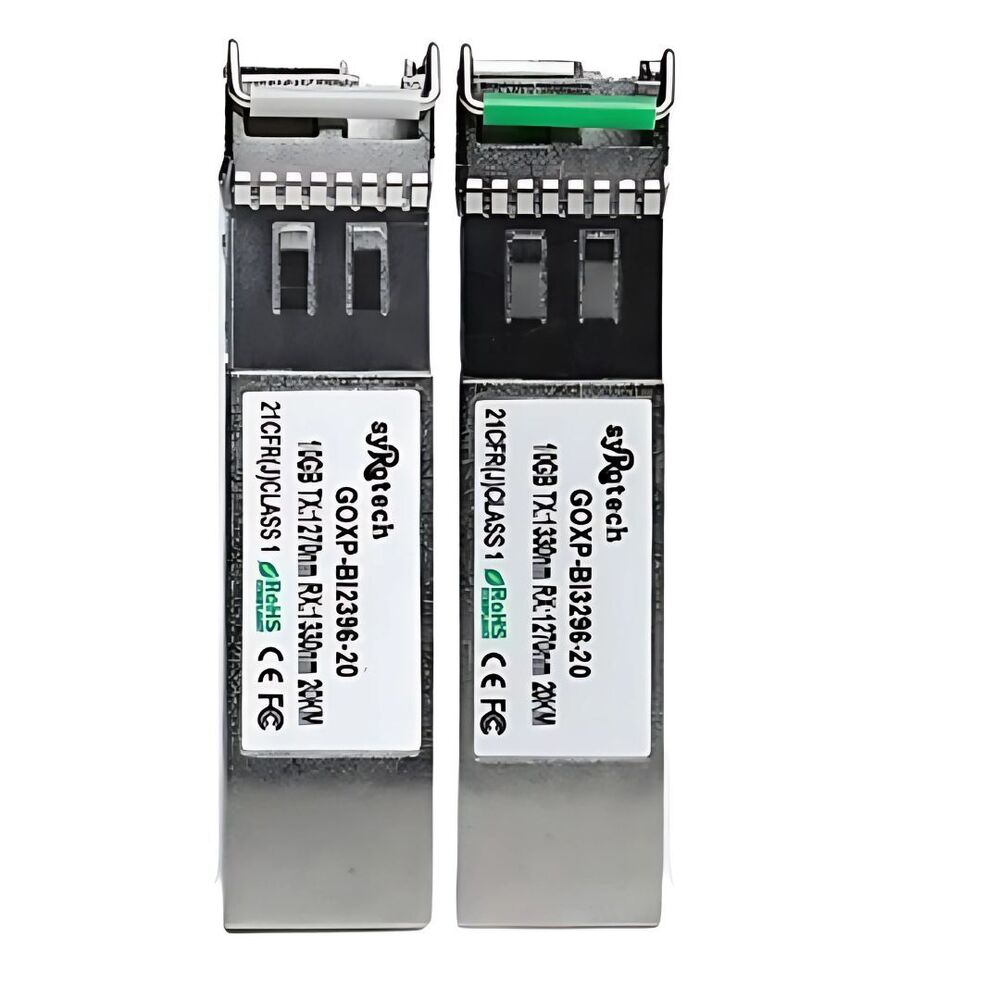

Optical Transceivers 10g SFP 20KM Bidi

Price 2500 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Optical Transceivers 10g SFP 20KM Bidi Specification

Frequency
1330/1270 Nm Hertz (HZ)

Size
Standard

Power Supply
Electric

Shelf Life
1 Years

Product Type
Optical Transceivers 10g SFP 20KM Bidi

Application
Networking

Material
Metal

About Optical Transceivers 10g SFP 20KM Bidi

The 10G SFP 20KM Bidi Optical Transceiver is a highperformance costeffective module designed for longdistance data transmission over singlemode fiber SMF Ideal for enterprise networks data centers and telecom applications this 10G Small Formfactor Pluggable SFP BiDirectional BiDi transceiver delivers 10 Gigabit Ethernet speeds across distances up to 20 kilometers using just one fiber strand

With advanced bidirectional technology that enables simultaneous transmission and reception of data on a single fiber this transceiver module maximizes fiber utilization reduces infrastructure costs and simplifies network deployment

BiDirectional Transmission BiDi

The transceiver uses Wavelength Division Multiplexing WDM to transmit and receive signals on a single fiber coretypically one end operates at 1270nm TX 1330nm RX and the other at 1330nm TX 1270nm RX This allows for fullduplex communication over a singlemode fiber optimizing fiber usage

HighSpeed 10G Connectivity

With data rates of up to 103 Gbps this optical transceiver ensures ultrafast data transmission ideal for demanding applications such as cloud computing storage networks video streaming and enterprise backbones

Extended Reach Up to 20KM

The module supports distances up to 20 kilometers making it a perfect solution for metro and campus networks longhaul enterprise connections or FTTH backhaul links

HotPluggable SFP Form Factor

The 10G SFP BiDi module supports hotswapping allowing it to be easily installed or replaced without shutting down the network Its compact SFP design ensures compatibility with a wide range of switches routers and network interface cards NICs

Digital Diagnostics Monitoring DDM

The module includes Digital Optical Monitoring DOM capabilities that allow realtime monitoring of parameters such as temperature supply voltage laser bias current transmitted power and received power for easier troubleshooting and maintenance

Interoperability

This 10G BiDi SFP transceiver is fully compliant with SFP MSA MultiSource Agreement and works with most major brands including Cisco Juniper HP Huawei Ubiquiti MikroTik and more brand compatibility may vary depending on firmware support

Advanced BiDi Technology for Efficient Networking

Utilizing bidirectional transmission at 1330nm/1270nm wavelengths, this transceiver enables full-duplex data communication on a single fiber, effectively doubling fiber capacity and lowering deployment costs. Its design meets the rigorous requirements of modern networking environments.

Reliable and Durable Construction

With a robust metal enclosure and standard size, the 10G SFP BiDi module fits securely into compatible devices, offering enhanced durability. The metal casing helps in thermal management and EMI shielding, ensuring long-term stability.

Versatile Applications and Trusted Supply

Our optical transceivers support applications ranging from enterprise LANs and campus networks to large-scale telecom installations. As a trusted supplier and manufacturer based in India, we provide products that meet varied industry standards and needs.

FAQ's of Optical Transceivers 10g SFP 20KM Bidi:

Q: How is the 10G SFP 20KM BiDi optical transceiver installed in a networking device?

A: The transceiver is designed with a standard SFP form factor. Simply insert it into the compatible SFP slot of your network switch, router, or media converter. Once installed, connect the appropriate single-mode optical fiber using LC connectors, and the device is ready for operation.

Q: What are the primary benefits of using BiDi transceivers with 1330nm/1270nm wavelengths?

A: BiDi transceivers allow simultaneous two-way communication over a single optical fiber, effectively doubling your network's capacity without the need for additional fiber installations. The specific 1330nm/1270nm frequency pairing ensures minimal signal interference and high data integrity over long distances.

Q: When should I consider replacing my 10G SFP BiDi module?

A: These modules have a shelf life of approximately 1 year under proper storage and handling conditions. If you experience degradation in signal quality, unexpected connection drops, or visible physical damage, it's advisable to replace the module to maintain optimal network performance.

Q: Where can these BiDi optical transceivers be used?

A: They are ideally suited for applications in data centers, metropolitan area networks (MAN), enterprise LANs, and telecommunications infrastructure where long-distance and high-speed connections over a single fiber are required.

Q: What is the typical process for importing or exporting these modules from India?

A: As a distributor and exporter based in India, we manage the compliance with local and international trade regulations, arrange certifications, and facilitate shipping. Orders can be processed by contacting us directly, with support for both small and bulk quantities.

Q: How is the product powered, and does it require any special power supply?

A: The module is electrically powered via the SFP slot of the host device. It does not require an external power supply as it draws the necessary electrical current directly from the networking equipment.

Q: What materials are used in the construction of this optical transceiver, and how does it benefit the product?

A: The transceiver is constructed with metal housing, which enhances durability, aids in heat dissipation, and provides effective shielding against electromagnetic interference, all contributing to increased reliability and longevity.
