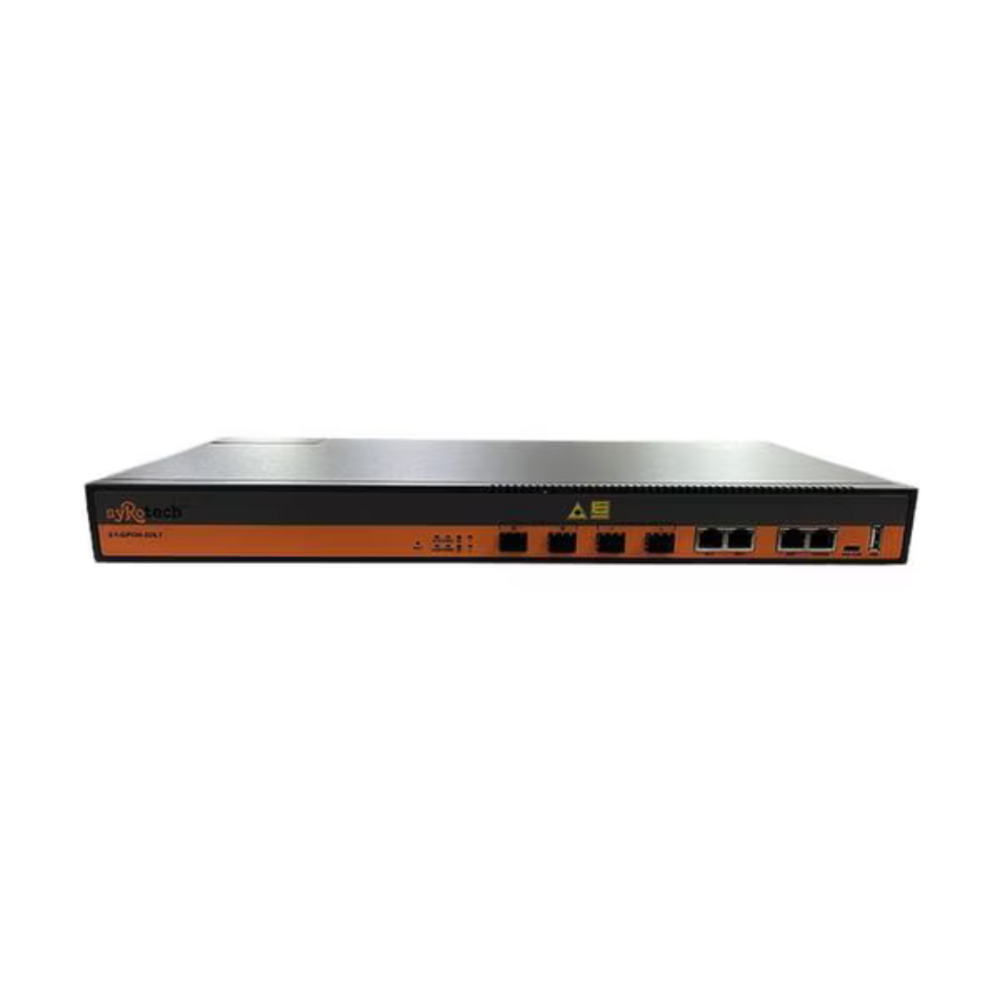

GEPON OLT 4 PORT UNLOADED

Name: GEPON OLT 4 PORT UNLOADED
Brand: SKY BIRDS INTERNATIONAL
Price: 24080.0 INR
Availability: InStock

Price 24080.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GEPON OLT 4 PORT UNLOADED Specification

Shelf Life
10+ Years

Model
GEPON OLT 4 PORT UNLOADED

Battery Backup
External Support (not included)

Size
Standard

Features
Good Quality

Power Supply
100-240V AC, 50/60 Hz

Connectivity Type
Fiber Optic

Interface Type
4 x SFP PON ports, 4 x GE combo (copper/SFP) uplink

Frequency
50/60 Hz

Operating Temperature
-10°C to +55°C

Range
Up to 20 km (PON Port)

Mounting Type
Rack Mountable (1U)

Product Type
GEPON OLT 4 PORT UNLOADED

Application
Telecommunications

Dimension (L*W*H)
442 mm x 330 mm x 44 mm

Material
Metal (Industrial Grade) Cabinet

Weight
Approx. 4.6 kg

Capacity
Supports up to 256 ONUs

Coverage Area
Up to 20 km per port

Redundancy
Dual Power Supply Slots

PON Interface Type
IEEE 802.3ah compliant

Power Consumption
< 45W

Downlink Ports
4 x GEPON SFP Ports, Unloaded

Surge Protection
Built-in

QoS
Supported

Splitter Ratio
1:64 per port

MAC Address Table
16K

VLAN Support
4096 VLANs

Uplink Ports
4 x Gigabit Ethernet Combo Ports

Management
SNMP, Telnet, Web GUI, CLI

LED Indicators
PON, LOS, PWR, SYS, ALM, LINK

GEPON OLT 4 PORT UNLOADED Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
3 Days

Packaging Details
SKY BIRDS INTERNATIONAL

About GEPON OLT 4 PORT UNLOADED

Key Features

Support high performance layer 3 switching
Support Netcare app
Fast ONU Register
Credit Time control
ONU auto detect and ONU firmware auto upgrade
Up to 44GE uplink
WEB/CLI/EMS management

Flexible Network Management

Administer your network with ease using SNMP, Telnet, Web GUI, and CLI interfaces. Whether you prefer remote monitoring or direct configuration, this GEPON OLT adapts to your workflow, ensuring efficient network oversight and troubleshooting.

Robust Performance and Reliability

Built for heavy-duty telecom usage, the OLT offers dual redundant power supply slots for uninterrupted operation. Its industrial-grade metal cabinet ensures resilience, while built-in surge protection and a broad temperature range (-10C to +55C) make it ideal for challenging environments.

Broad Coverage and High Scalability

Deploy up to 256 ONUs per OLT with splitter ratios of 1:64 per port, supporting a coverage area of up to 20 km per port. Whether for urban or rural networks, this device enables you to expand services efficiently without compromising quality.

FAQ's of GEPON OLT 4 PORT UNLOADED:

Q: How do I manage the GEPON OLT 4 Port Unloaded unit?

A: You can manage the OLT using SNMP, Telnet, Web GUI, or CLI interfaces, allowing both remote and local administration. Each method provides network visibility, configuration, and troubleshooting capabilities tailored to different user preferences.

Q: What applications is the GEPON OLT suitable for?

A: This OLT is widely used in telecommunications networks, especially for fiber-to-the-home (FTTH), broadband ISPs, and enterprise fiber deployments, powering robust and scalable fiber optic connectivity across urban and rural areas.

Q: Where can I install this OLT device?

A: The rack-mountable (1U) design allows installation in standard telecom racks typically found in data centers, central offices, or remote cabinets. Its compact size, industrial metal build, and broad operating temperature range make it versatile for varied settings.

Q: What is the process for connecting ONUs to the OLT?

A: Connect ONUs to the GEPON SFP PON ports using fiber optic cables. The OLT supports up to 256 ONUs, with each port managing a 1:64 splitter ratio. Configuration and management are then performed via SNMP, Telnet, Web GUI, or CLI.

Q: How does the OLT benefit network operations?

A: The OLT enhances network reliability with dual redundant power slots and built-in surge protection. It also offers extensive VLAN, QoS, and MAC address support, ensuring secure, efficient, and high-quality service delivery for large-scale deployments.

Q: When is battery backup used for the OLT?

A: Battery backup is utilized during power outages to maintain uninterrupted network services. This OLT supports external battery backups (not included) and operates within a 100-240V AC, 50/60 Hz power supply range.
