Digital Head End And STB

16 QAM SBINT QAM Modulator

24 CHANNEL MPEG4 ENCODER

Technical Specifications Video Input Channels: 24 x CVBS/HDMI/SDI (based on variant) Audio Inputs: 24 x Analog or Embedded Video Compression: MPEG4/H.264 AVC Audio Compression: AAC, MPEG1 Layer II Output Protocols: UDP, RTP, RTSP, HTTP, HLS (optional) Resolution Support: PAL/NTSC (CVBS), HD/Full HD (HDMI/SDI) Bitrate Range: 512 kbps to 8 Mbps per channel Network Interface: 2 x 100/1000M Ethernet (RJ45) Management Interface: Web GUI, SNMP, Telnet Power Supply: AC 100-240V, 50/60Hz Operating Temperature: 0C to 50C

32 IN 1 QAM MODULATOR SKY BIRDS

Technical Specifications Input Channels: 32 (Supports HDMI, AV, VGA, RF) Frequency Range: 47 MHz to 862 MHz Modulation Type: QAM (Quadrature Amplitude Modulation) Video Standard Supported: MPEG-2, MPEG-4, H.264 Audio Standard Supported: MPEG-1 Layer II, AAC Maximum Output Power: 75 Ohms, 10dBmV Input Interface: HDMI, AV, VGA, RF Output Interface: RF (Coaxial Cable) Power Supply: Dual AC Input Cooling System: Fan-assisted cooling for heat dissipation Operating Temperature: 0C to 50C Storage Temperature: -20C to 70C Dimensions: 1U Rack Mountable Weight: 3.5 kg

SBI 48 QAM MODULATOR

The 48 QAM Modulator is an essential device for any digital broadcast or broadband network that requires high-density QAM signal modulation. With its ability to support up to 48 channels, flexible input options, and low-latency output, it is an ideal solution for cable operators, broadcasters, ISPs, and IPTV providers. The modulatorïs robust performance, reliability, and ease of integration make it a key component in modern media distribution systems. Whether youïre broadcasting television content, delivering internet data, or managing private networks, the 48 QAM Modulator offers a scalable and efficient solution for your digital transmission needs.

SBI 8 CHANNEL MPEG 2 LCI ENCODER MODULATOR

8 Channel MPEG 2 LCI Encoder Modulator The 8 Channel MPEG 2 LCI Encoder Modulator is an advanced, high-performance device designed to efficiently encode and modulate multiple channels of video signals for digital broadcasting applications. This versatile unit is specifically engineered for professional use in environments such as cable television (CATV), satellite transmission, and IP-based networks, where reliable, high-quality signal transmission is paramount. The device offers seamless integration into existing broadcast systems, enabling users to enhance their content distribution with the latest encoding and modulation technologies.

SBI 8 CHANNEL PEG 4 ENCODER

Public Access Broadcasting: Ideal for local cable TV channels broadcasting public meetings, events, or community programs. Educational Institutions: Universities and schools can use the encoder to stream lectures, online classes, or student programming to multiple platforms simultaneously. Government Communications: Enables city councils, government departments, and civic offices to transmit important updates, legislative proceedings, and emergency broadcasts. Corporate Video Networks: Businesses with internal video communication systems can use this device to deliver training sessions, updates, and promotional content.

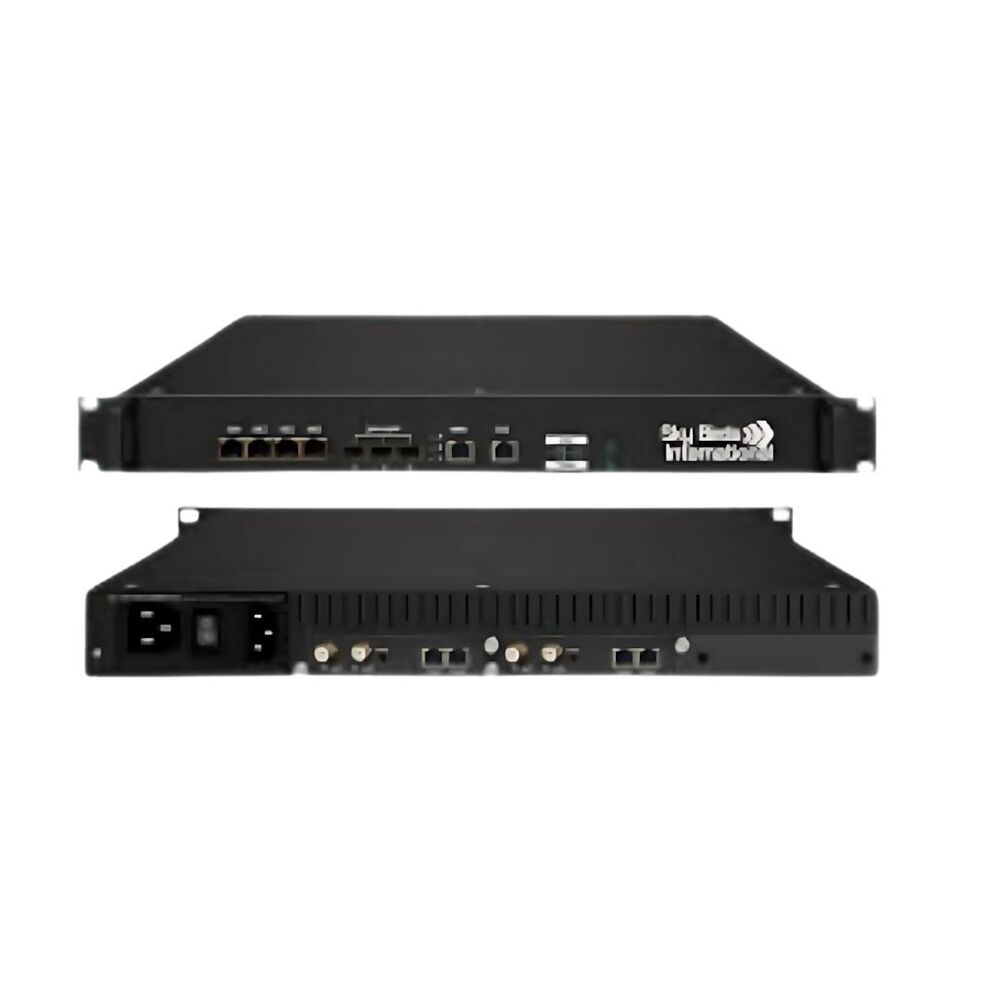

SBI IP QAM MODULATOR 64 FREQUENCY

Specifications Supports up to 1024 ï 2 channels TS over UDP/RTP (unicast and multicast, IGMP v2/v3) Supports 32 ï 2 scrambled TS over UDP/RTP/RTSP output 32 ï 2 non-adjacent QAM carriers output Compliant with DVB-C (EN300 429) and ITU-T J.83 A/B standards Supports RS (204,188) encoding

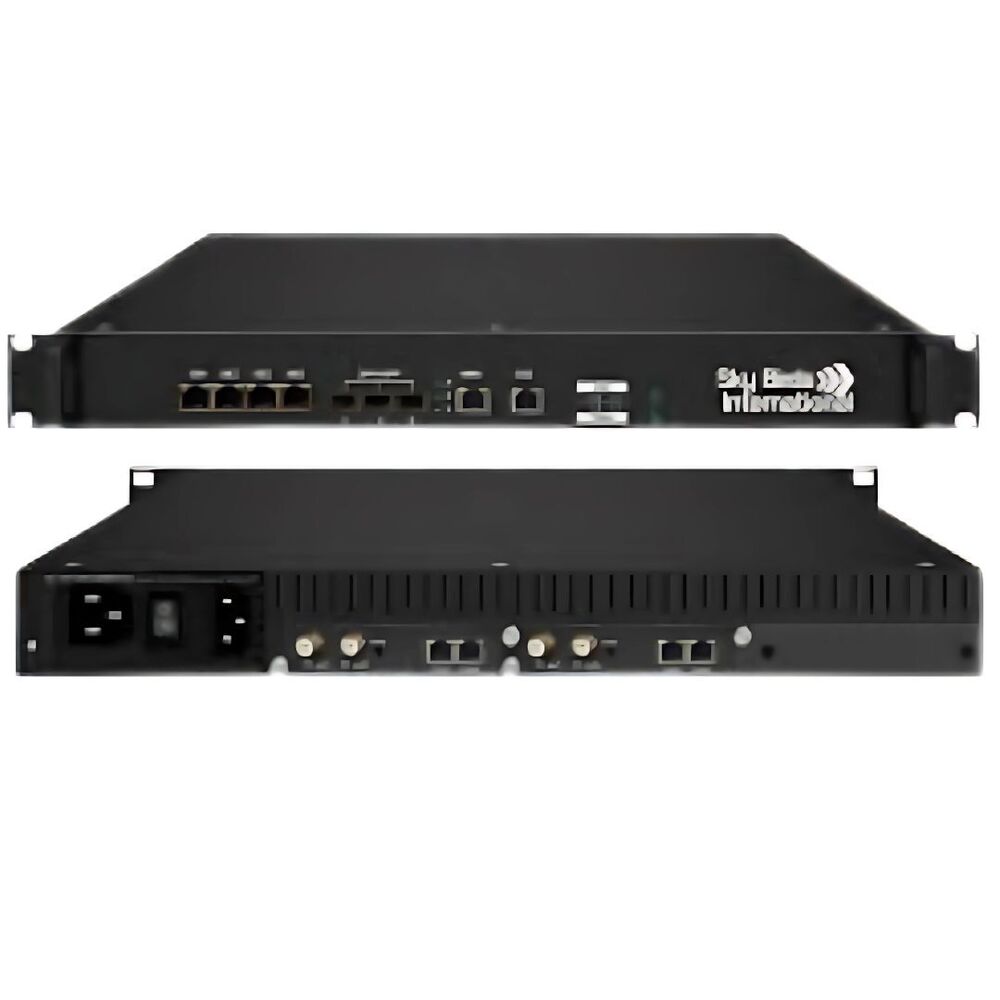

SBI IP QAM MODULATOR 96 CHANNEL

The IP QAM Modulator 96 Channel is a powerful and advanced solution designed for large-scale digital content distribution over cable television (CATV), IPTV, and hybrid fiber-coaxial (HFC) networks. Built for maximum efficiency, scalability, and performance, this modulator enables the conversion of multiple IP streams into RF output using QAM (Quadrature Amplitude Modulation) across 96 individual frequencies. Whether youïre a cable TV operator, hotel, university, or a commercial network provider, this device ensures unmatched signal quality and channel density for modern broadcasting needs.
